Mesh Map node

Mesh Map node bakes maps for the current custom mesh and recalculates automatically when a new mesh is selected in the 3D preview.

_images/node_miscellaneous_mesh_map.png

Inputs

The Mesh Map node does not accept any input.

Outputs

The Mesh Map node outputs the selected generated map, which can be the following:

Position, Normal, Tangent, Minimum/Maximum Curvature, Cavity, Pointiness, Ambient Occulusion, Bent Normals, Thickness, Adjacency

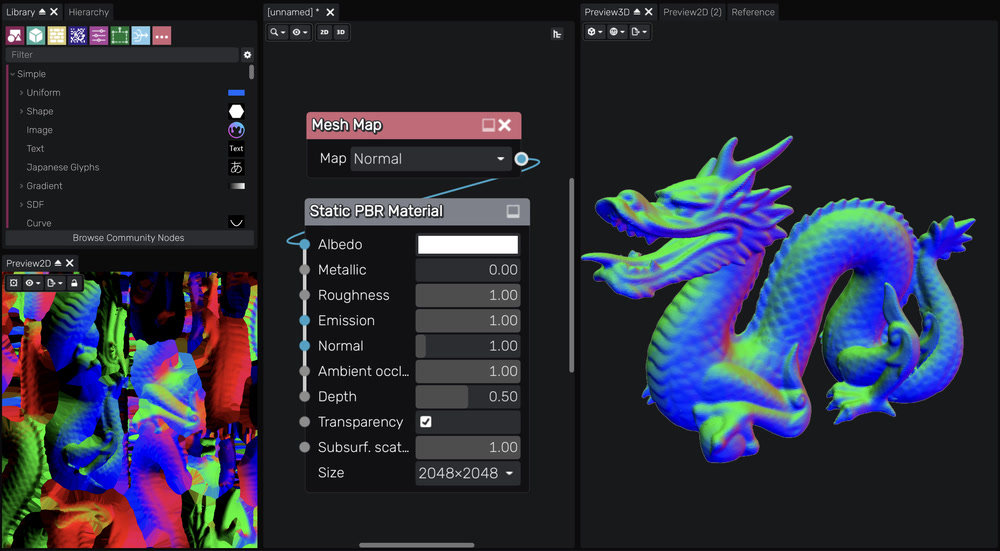

Example Images

_images/screenshot_mesh_map.jpg
